Managed Industrial Ethernet Extenders

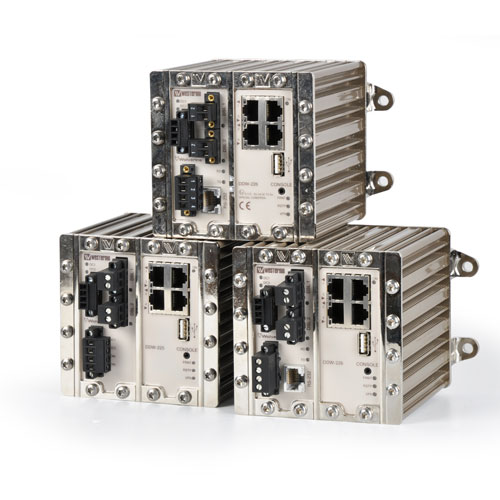

Extend your managed network with the Wolverine
The Westermo Wolverine series of industrial Ethernet extenders allow cost-effective Ethernet networks to be created over long distances, at high data rates. The SHDSL technology employed makes it possible to reuse many types of pre-existing cabling which in turn can lead to considerable financial savings. With support for multidrop networks, redundant rings, legacy serial connections and layer 3 routing functions, our range of Ethernet extenders can meet any demand your application requires.

  • Managed Industrial Ethernet Extenders
  • DDW-142: Industrial Ethernet Extender, 2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T, 2x 2-position detachable screw terminals for SHDSL ports,1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
  • DDW-142-12VDC: Industrial Ethernet Extender with 12VDC support, 2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T, 2x 2-position detachable screw terminals for SHDSL ports, 1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
  • DDW-142-12VDC-BP: Industrial Ethernet Extender with bypass relay, 2 x RJ-45, 10 Mbit/s, 100 Mbit/s, manual or auto, 2 x 2-position detachable screw terminal, 1 x RJ-45, 300 bit/s – 115.2 kbit/s
  • DDW-142-485: Industrial Ethernet Extender, 2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T, 2x 2-position detachable screw terminals for SHDSL ports, 1x 4-position detachable screw terminal for RS-422/485 port
  • DDW-142-EX: EX approved Industrial Ethernet Extender, 2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T, 2x 2-position detachable screw terminals for SHDSL ports, 1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
  • DDW-225: Redundant Ring Ethernet Extender, 4x RJ-45, 10 Mbit/s, 100 Mbit/s Base T, 2x 2-position detachable screw terminals for SHDSL ports
  • DDW-226: Ethernet Extender with serial support, 4x RJ-45, 10 Mbit/s, 100 Mbit/s Base T, 2x 2-position detachable screw terminals for SHDSL ports, 1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
  • DDW-242: Advanced Industrial Ethernet Extender, 2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T, 2x 2-position detachable screw terminals for SHDSL ports, 1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
  • DDW-242-485: Advanced Industrial Ethernet Extender, 2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T, 2x 2-position detachable screw terminals for SHDSL ports, 1x 4-position detachable screw terminal for RS-422/485 ports

If you need more info and if you have any projects, please contact us
