Westermo Product Guide

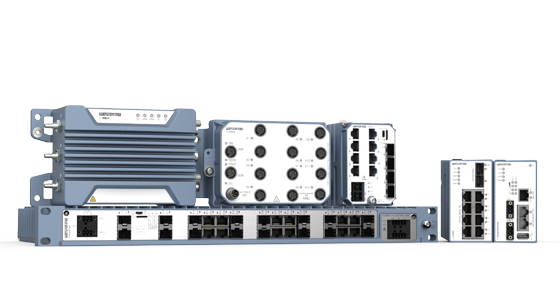

Industrial Layer 3 Switches

A rugged industrial switch, router and firewall in one box

The Westermo range of industrial layer 3 switches provides enhanced routing functionality, all in a robust, single unit design. Our switches offer static routing, IPSec VPN support, DMZ and a powerful firewall in order to segregate networks and protect mission-critical data. With support for Network Address Translation (NAT) and port-forwarding, the Westermo layer 3 switches ensure your network is protected from the threats posed by the Internet.

  • Industrial Layer 3 Switches
    • L205-S1: Managed Device Server Switch with Routing Functionality, 4 x RJ-45, 10 Mbit/s, 100 Mbit/s, 1 x RJ-45, RS-232, 50 bit/s – 115.2 kbit/s
    • L205-S1-EX: Managed EX approved Device Server Switch with Routing Functionality, 4 x RJ-45, 10 Mbit/s, 100 Mbit/s, 1 x RJ-45, RS-232, 50 bit/s – 115.2 kbit/s
    • L206-F2G: Managed Ethernet Switch with Routing Functionality, 4 x RJ-45, 10 Mbit/s, 100 Mbit/s, 2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
    • L206-F2G-EX: Managed Ethernet Switch with Routing Functionality, 4 x RJ-45, 10 Mbit/s, 100 Mbit/s, 2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
    • L206-S2: Managed Device Server Switch with Routing Functionality, 4 x RJ-45, 10 Mbit/s, 100 Mbit/s, 1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s, 1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
    • L206-S2-EX: Managed EX approved Device Server Switch with Routing Functionality, 4 x RJ-45, 10 Mbit/s, 100 Mbit/s, 1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s, 1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
    • L208-F2G-S2: Managed Device Server Switch with Routing Functionality, 4 x RJ-45, 10 Mbit/s, 100 Mbit/s, 2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45), 1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s, 1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
    • L208-F2G-S2-EX: Managed EX approved Device Server Switch with Routing Functionality, 4 x RJ-45, 10 Mbit/s, 100 Mbit/s, 2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45), 1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s, 1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
    • L210-F2G: Managed Ethernet Switch with Routing Functionality, 8 x RJ-45, 10 Mbit/s, 100 Mbit/s, 2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
    • L210-F2G-EX: Managed EX approved Ethernet Switch with Routing Functionality, 8 x RJ-45, 10 Mbit/s, 100 Mbit/s, 2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
    • RFI-207-F4G-T3G: 3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45, 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
    • RFI-207-F4G-T3G-EX: EX approved Industrial Routing Switch, 3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45, 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
    • RFI-211-F4G-T7G: Industrial Routing Switch, 7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45, 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
    • RFI-211-F4G-T7G-EX: EX approved Industrial Routing Switch, 7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45, 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
    • RFI-211-T3G: Industrial Routing Switch, 3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45, 8 x 10/100 Mbit/s, Ethernet TX, RJ-45
    • RFI-215-F4G-T3G: Industrial Routing Switch, 3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45, , 8 x 10/100 Mbit/s, Ethernet TX, RJ-45, 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
    • RFI-219-F4G-T7G: Industrial Routing Switch, 8 x 10/100 Mbit/s, Ethernet TX, RJ-45, 7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45, 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
    • RFI-219-F4G-T7G-EX: EX approved Industrial Routing Switch, 8 x 10/100 Mbit/s, Ethernet TX, RJ-45, 7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45, 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
    • RFI-219-F4G-T7G-F8: Industrial Routing Switch, 7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45, 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45), 8 x 100 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
    • RFI-219-F4G-T7G-F8-EX: EX approved Industrial Routing Switch, 7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45, 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45), 8 x 100 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
    • RFI-219-T3G: Industrial Routing Switch, 3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45, 16 x 10/100 Mbit/s, Ethernet TX, RJ-45
    • RFI-219-T3G-EX: EX approved Industrial Routing Switch, 3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45, 16 x 10/100 Mbit/s, Ethernet TX, RJ-45
    • RFIR-219-F4G-T7G-AC: 19” Industrial Routing Switch AC version, 100 to 240 VAC 50 to 60 Hz, 7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45, 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45), 8 x 10/100 Mbit/s, Ethernet TX, RJ-45
    • RFIR-219-F4G-T7G-DC: 19” Industrial Routing Switch DC version, 16 to 60 VDC, 7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45, 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45), 8 x 10/100 Mbit/s, Ethernet TX, RJ-45
    • RFIR-227-F4G-T7G-AC: 19” Industrial Routing Switch AC version, 100 to 240 VAC 50 to 60 Hz, 7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45, 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45), 16 x 10/100 Mbit/s, Ethernet TX, RJ-45
    • RFIR-227-F4G-T7G-DC: 19” Industrial Routing Switch DC version, 16 to 60 VDC, 7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45, 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45), 16 x 10/100 Mbit/s, Ethernet TX, RJ-45
    • RFR-212-FB: Managed EN 50155 Backbone Routing Switch, 12 x 100 Mbps ports, whereof 4 with bypass capability, 1 x USB
    • Viper-208-T4G-TBN: Managed EN 50155 Backbone Routing Switch, 4 x Gbps ports, 4 x 100 Mbps ports, 1 x USB, 1 x RS-232 console port
    • Viper-208-T8G-TBN: Managed EN 50155 Backbone Routing Switch, 8 x Gbps ports, 1 x USB, 1 x RS-232 console port
    • Viper-212A: EN 50155 Managed Routing Switch, 12 x 100 Mbps ports, 1 x USB, 1 x RS-232 console port
    • Viper-212A-P8-HV: EN 50155 Managed PoE Routing Switch, 12 x 100 Mbps ports, whereof 8 PoE, 1 x USB, 1 x RS-232 console port
    • Viper-212A-P8-LV: EN 50155 Managed PoE Switch, 12 x 100 Mbps ports, whereof 8 PoE, 1 x USB, 1 x RS-232 console port
    • Viper-212A-T3G: EN 50155 Managed Gbps Routing Switch, 3 x Gbps ports, 9 x 100 Mbps ports, 1 x USB, 1 x RS-232 console port
    • Viper-212A-T3G-P8-HV: EN 50155 Managed Gbps PoE Routing Switch, 3 x Gbps ports, 9 x 100 Mbps ports, whereof 8 PoE, 1 x USB, 1 x RS-232 console port
    • Viper-212A-T3G-P8-LV: EN 50155 Managed Gbps PoE Routing Switch, 3 x Gbps ports, 9 x 100 Mbps ports, whereof 8 PoE, 1 x USB, 1 x RS-232 console port
    • Viper-212A-T5G: EN 50155 Managed Gbps Routing Switch, 5 x Gbps ports, 7 x 100 Mbps ports, 1 x USB, 1 x RS-232 console port
    • Viper-212A-T5G-P8-HV: EN 50155 Managed Gbps PoE Routing Switch, 5 x Gbps ports, whereof 2 PoE, 7 x 100 Mbps ports, whereof 6 PoE, 1 x USB, 1 x RS-232 console port
    • Viper-212A-T5G-P8-LV: EN 50155 Managed Gbps PoE Routing Switch, 5 x Gbps ports, whereof 2 PoE, 7 x 100 Mbps ports, whereof 6 PoE, 1 x USB, 1 x RS-232 console port
    • Viper-220A: EN 50155 Managed Routing Switch, 20 x 100 Mbps ports, 1 x USB, 1 x RS-232 console port
    • Viper-220A-P8-HV: EN 50155 Managed PoE Routing Switch, 20 x 100 Mbps ports, whereof 8 PoE, 1 x USB, 1 x RS-232 console port
    • Viper-220A-P8-LV: EN 50155 Managed PoE Routing Switch, 20 x 100 Mbps ports, whereof 8 PoE, 1 x USB, 1 x RS-232 console port
    • Viper-220A-T4G: EN 50155 Managed Gbps Routing Switch, 4 x Gbps ports, 16 x 100 Mbps ports, 1 x USB, 1 x RS-232 console port
    • Viper-220A-T4G-P8-HV: EN 50155 Managed Gbps PoE Routing Switch, 4 x Gbps ports, whereof 2 PoE, 16 x 100 Mbps ports, whereof 6 PoE, 1 x USB, 1 x RS-232 console port
    • Viper-220A-T4G-P8-LV: EN 50155 Managed Gbps PoE Routing Switch, 4 x Gbps ports, whereof 2 PoE, 16 x 100 Mbps ports, whereof 6 PoE, 1 x USB, 1 x RS-232 console port

If you need more info and if you have any projects, please contact us
